Product Description

Pneumatic automatic sliding flat screen printer

1. Sliding workbench

• Precise positioning advantage: The sliding workbench can move smoothly and accurately on the plane. It can ensure the positioning accuracy of the workbench during the printing process through precise mechanical structures, such as linear slides or sliders.

• Improve work efficiency: The sliding workbench is convenient for quickly changing printing materials or adjusting the printing position. The operator can easily place the items to be printed on the workbench, and then slide the workbench under the screen for printing through simple operations.

2. Vacuum suction device

• Fixing printing materials: The vacuum suction device is the key to ensure that the printing materials are placed stably on the workbench. When the suction function is turned on, the surface of the workbench will generate suction, firmly adsorbing the printing materials on the table. It is particularly effective for thin and easy-to-move printing materials (such as paper, film, etc.), which can avoid displacement due to the adhesion of screen ink or the scraping of the scraper.

3. Touch screen operation

• Intuitive and easy-to-use interface: Touch screen operation makes the control of the screen printer simple and convenient. The operation interface intuitively displays various function options, such as printing speed, screen up and down speed, suction strength and other parameter settings. Operators can easily adjust the working state of the printing press by touching the icons on the screen or entering values, without complex mechanical operation knowledge, which reduces the operation threshold.

4. Pneumatic up and down of the screen

• Smooth and precise movement: The design of pneumatic up and down of the screen uses compressed air as power to make the lifting and lowering of the screen smoother and more precise. Compared with the traditional mechanical lifting method, the pneumatic system can better control the movement speed and position of the screen. When the screen is pressed down to contact the printing material, it can fall at a uniform speed and appropriate pressure to ensure that the ink is evenly transferred to the surface of the material.

5. Linear guide control

• Ensure movement accuracy: Linear guide control ensures that the moving parts of the printing press move accurately in a straight line. Whether it is the movement of the sliding table or the up and down movement of the screen, the linear guide can provide high-precision guidance. It can effectively reduce the shaking and deviation of moving parts, making each action in the printing process more stable and accurate, and plays a key role in achieving high-definition and high-quality flat screen printing.

PS-3050PVH Flat precision screen printing machine with movement vacuum table //Structure
Working table	Vacuum working table, Size: 300*500mm
Actions	Up-down of screen plate
To be printed	Plain objects
Squeegee stroke	Adjust the Limited switch
Squeegee and screen plate control	High precision linear guideway
PS-3050PVH  Flat screen printing machine with movement vacuum table //Usage and characters
Application	Widely used in Glass printing field; With UV curing machine, Can finish many UV special printing process for UV package industry. Suitable for printing Mobile windows ; Suitable for printing water transfer label and heat transfer label through diffrent process; The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit
PS-3050PVH Flat screen printing Machine with movement vacuum table//Parameters
Technical parameters	Max printing thickness: 150 mm； Air consumption: 80Litre/Min； Dimension of working table: 400×600mm； Max printing areas: 300×500mm; Max printing speed: 1000Pcs/H; Max frame dimension: 500×850mm; Compress air: 5-7 bar; Stroke of cylinder up and down:160mm； Stroke of Squeegee: 500mm; Table Precision: 0.05mm; Rang adjustment of table: 10mm.
Works supply	110V-220V Power supply； 5-7Barcompress air；
Package parameters	Installing size : 1280×1030×1590mm Gross weight: 276kg;
	Package size : 1280×1030×1590mm Gross weight: 336kg;
H.S.CODE	8443192190
Certificate	CE

Machine advantage:

• Working table can be in-out automatically, operation more safe;
• High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application︰
In the middle and low-end flat screen printing machine market, pneumatic screen printing machines are still very competitive. Price is one factor, and handling is also an important factor. Pneumatic screen printing machines are the earliest products recognized by the market because of pneumatic components and electronic components. With a very wide and stable supply chain, because the screen printing machine is relatively simple in action, the use of pneumatic control is still the most acceptable structure for operators. If your work involves paper, film and stationery, printing of toys, pneumatic screen printing machine Will still be preferred. The pressure of the screen printing machine is not high, and usually it will not cause serious damage to the human body. However, for the sake of safety, many users have proposed the use of automatic entry and exit workbench. In addition to safety, it is more convenient for you to take and place the product, and it is easier to observe the printing. effects and make real-time adjustments.

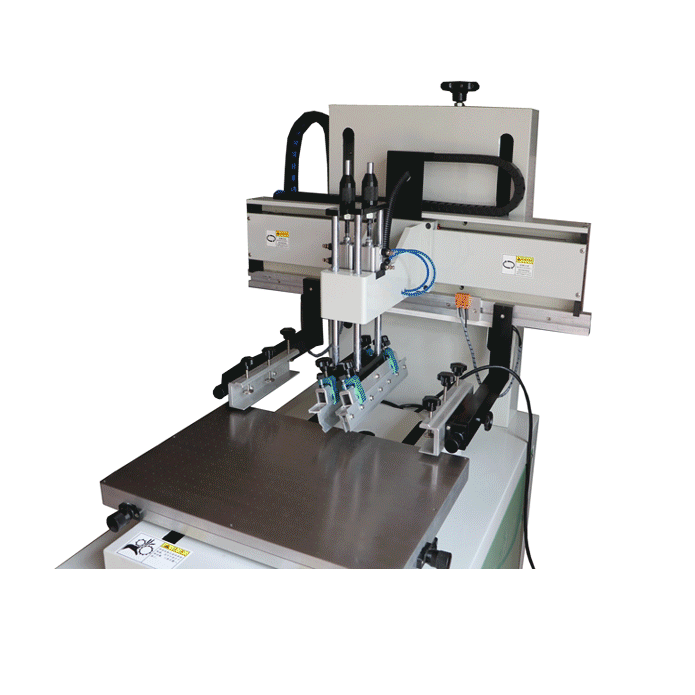

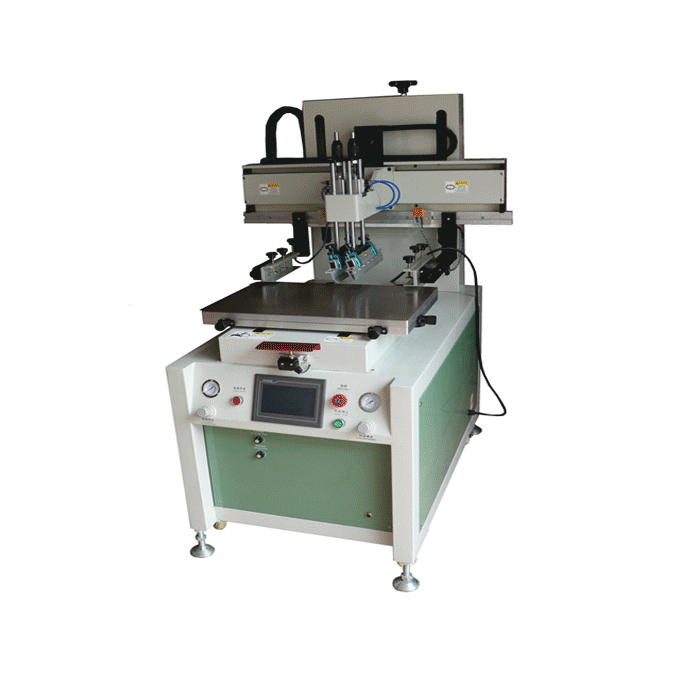

Product Image
