Mask UV disfection machine

Mask UV disfection machine

Model No.︰M-50200uvm

Brand Name︰KC

Country of Origin︰China

Unit Price︰US $ 2073 / pic

Minimum Order︰1 pic

Inquire Now

Product Description

UV disfection machine for mask //Usage



  • In the process of making a mask, the surface of the mask will be contaminated with various microorganisms and bacteria. After packaging, it is directly used for protection. Not only will it not have the effect of isolating germs, but it will cause disease.  Disinfection process, this process is usually carried out using ultraviolet radiation.
  •  The mask disinfection machine adopts a continuous conveying mode, and the mask enters the ultraviolet generating unit, and the ultraviolet rays irradiate the mask from above, below, and sides for more than 20 seconds to play a role of disinfection.

Usage

disfection

Mask UV disfection machine//Parameters

Technical parameters

M-50200UVM

  • Conveyor width:500mm;
  • Entering length: 400mm;
  • Entering height: 200mm;
  • Exit length: 400mm;
  • Coveyor length: 2000mm;
  • Disfection area length: 1200mm;
  • UV lamp wattage: 20W;
  • UV lamp number :top:4pcs,bottom:4pcs, side :3pcs, total 14 pcs;
  • Fan wattage:50W/220V;
  • Transport motor:120W/1P/220V;
  • conveyor speed :0~10m/min;
  • outer size :2000×650×1350mm(l×w×h);
  • Net weight:135KG;

M-50500UVM



  • Conveyor width:500mm;
  • Entering length: 400mm;
  • Entering height: 200mm;
  • Exit length: 400mm;
  • Coveyor length: 5000mm;
  • Disfection area length: 4200mm;
  • UV lamp wattage: 20W;
  • UV lamp number :top:16pcs,bottom:16pcs, side :12pcs, total 56 pcs;
  • Fan wattage:50W/220V;
  • Transport motor:200W/1P/220V;
  • conveyor speed :0~10m/min;
  • outer size :5000×650×1350mm(l×w×h);
  • Net weight:369KG;

Power suppliy

  • 220V 。



  • Package Dimension: 2.15×0.85×1.42mm(L×W×H)
  • Gross weight: 149Kg;
  • CBM: 2.0213

H.S.Code

8443198000

Certefication

CE

Mask UV disfection machine //Advantage

Function

  • Teflon conveyor belt with high temperature resistance;
  •  Famous brand motor drive, stepless speed adjustment, easy to adjust the conveying speed according to product characteristics;
  • UV lamp tube has concentrated light intensity and long service life;
  • The top, bottom, and sides of the UV lamp tube are evenly distributed, and the mask can be irradiated and disinfected in multiple dimensions;
  • Taiwan electronic components (transformers, starters), precise control and long life;
  • With the function of ventilation, it can quickly remove the heat of the curing room, reduce product deformation, and improve the effectiveness of the lamp;
  • Stainless steel body welding, beautiful appearance;
  •  Large-diameter traction roller, stable transmission, no deviation.

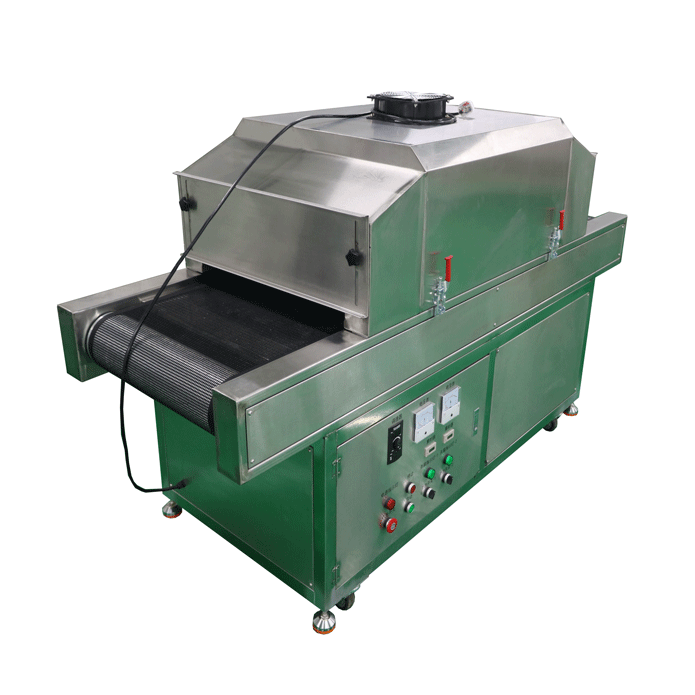

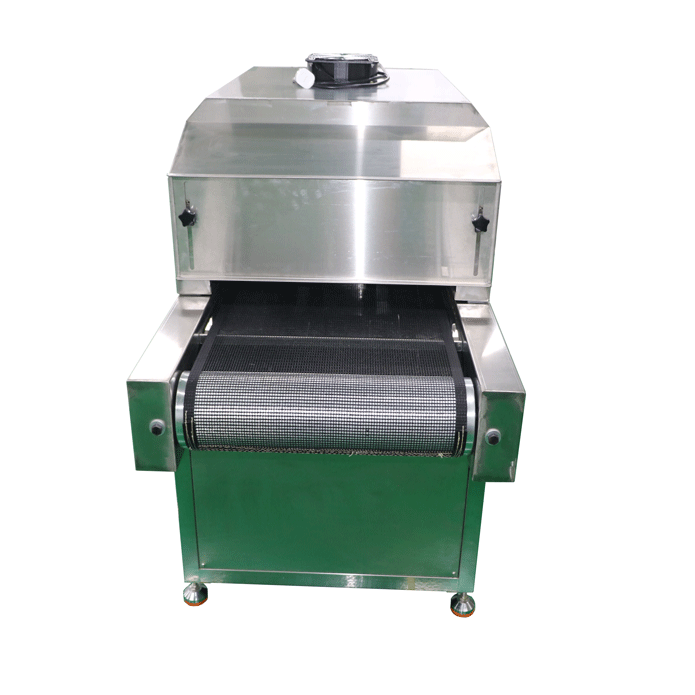

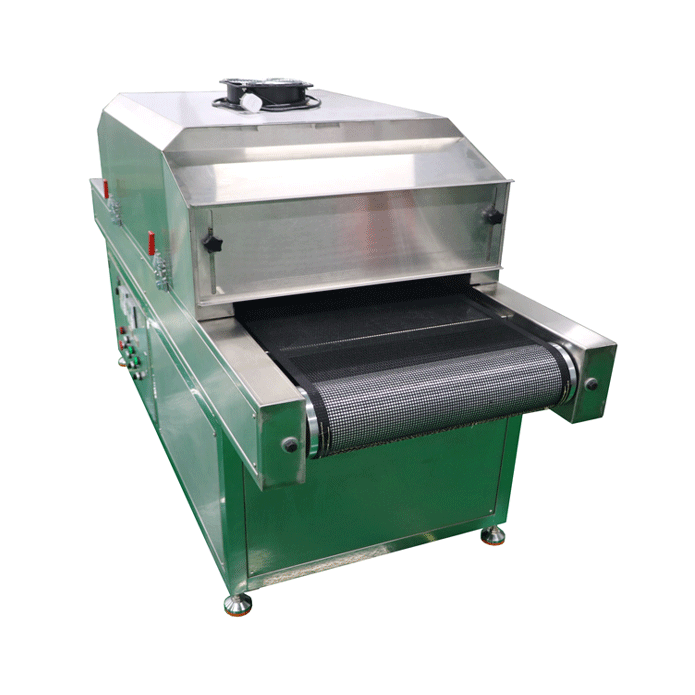

Product Image
