Tabletop Cylinder screen printer

Tabletop  Cylinder screen printer

Model No.︰ST-60S

Brand Name︰KC

Country of Origin︰China

Unit Price︰US $ 1250 / pic

Minimum Order︰1 pic

Inquire Now

Product Description

The desktop curved screen printer is a type of desktop screen printer, which is mainly used for printing curved objects. Because the desktop screen printer is made by discarding the body part, it is relatively low. Desktop curved screen printers also use the up and down movement of the screen, so the precision of desktop curved screen printers is relatively high. Considering that the overall structure of desktop curved screen printers is not much different from that of vertical screen printers, its cost is not obvious. reduce.

ST-60S  Multi-function cylinder screen printing machine//Structure

Working table

Cylinder workbench

Actions

Up-down of screen plate

To be printed

  • Round diameter:80mm;
  • Cylindroid Height: 160mm.

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

ST-60S Screen printing machine//Usage and characters

Guide

  • 80mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
  • Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
  • With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
  • Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
  • Upper and lower part of Screen plate, take place after the table automatically lifting the work piece;
  • You can use the foot switch for automatic operation, the safety factor greatly increased;
  • Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

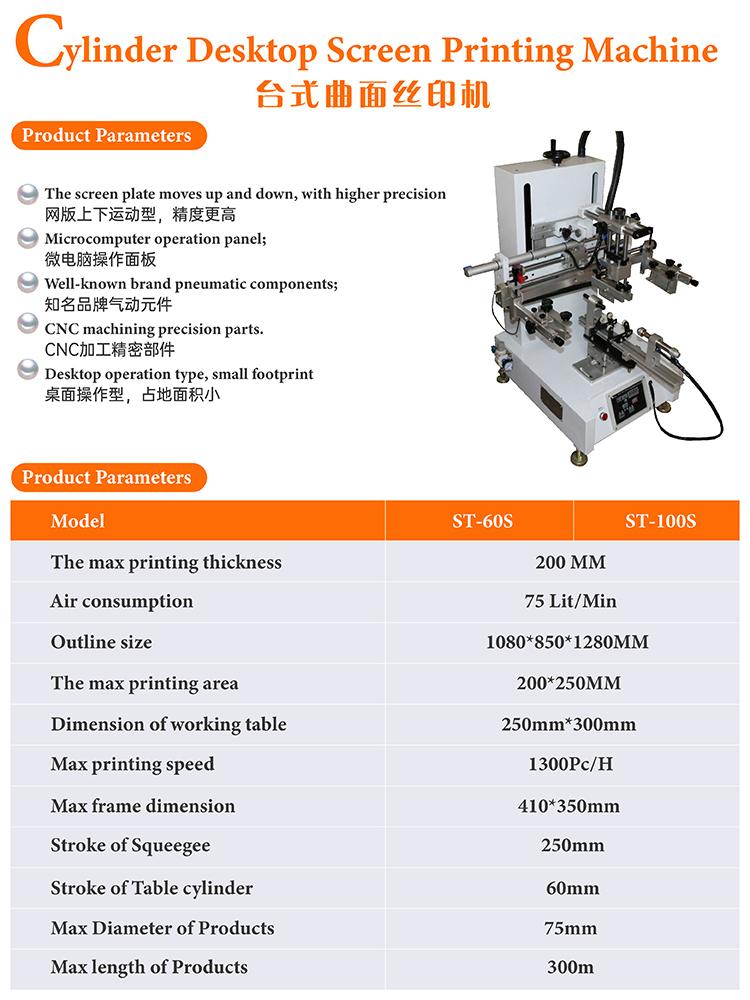

ST-60S Screen printing Machine //Parameters

Technical parameters

  • The max printing thickness: 200 MM;
  • Air consumption: 75 Lit/Min;
  • Outline size: 1080×850×1280MM;
  • The max printing area : 200×250MM;
  • Dimension of working table: 250mm×300mm;
  • Max printing speed: 1300Pc/H;
  • Max frame dimension: 410×350mm;
  • Stroke of Squeegee: 250mm;
  • Stroke of Table cylinder: 60mm;
  • Max Diameter of Products: 75mm;
  • Max length of Products: 300m

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Shipment parameters

  • Outer dimension: 860*660*960mm;
  • Net weight: 95Kg.
  • Package dimension: 980*840*1140mm;
  • Gross weight: 135Kg;
  • CBM: 096768

H.S.CODE

8443198000

Certificate

CE

ST-60S Cylinder screen printing Machine//Advantage

Function

  • Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
  • Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
  • High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
  • High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
  • Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
  • Microcomputer control program operations, set up a variety of modes;
  • Four counts digital LED count, high degree of automation;
  • Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
  • Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick

Application︰ The desktop curved screen printer is a type of desktop screen printer, which is mainly used for printing curved objects. Because the desktop screen printer is made by discarding the body part, it is relatively low. Desktop curved screen printers also use the up and down movement of the screen, so the precision of desktop curved screen printers is relatively high. Considering that the overall structure of desktop curved screen printers is not much different from that of vertical screen printers, its cost is not obvious. reduce.

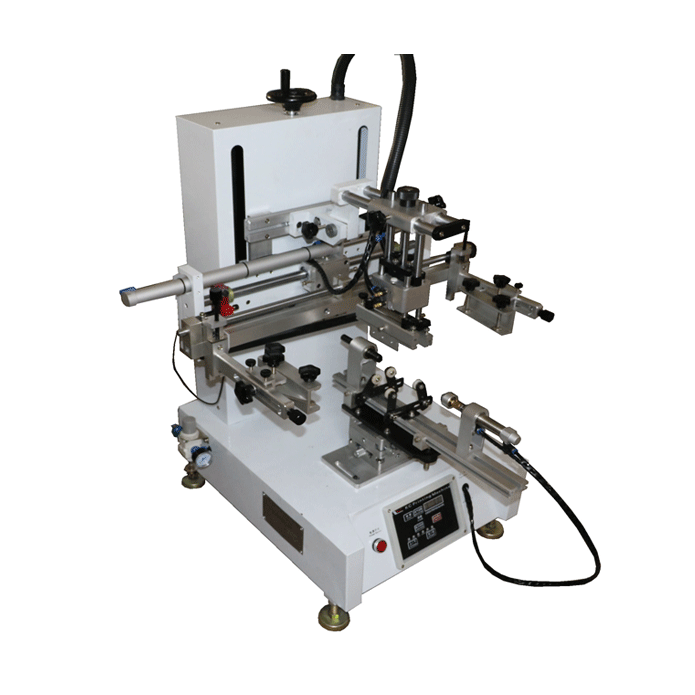

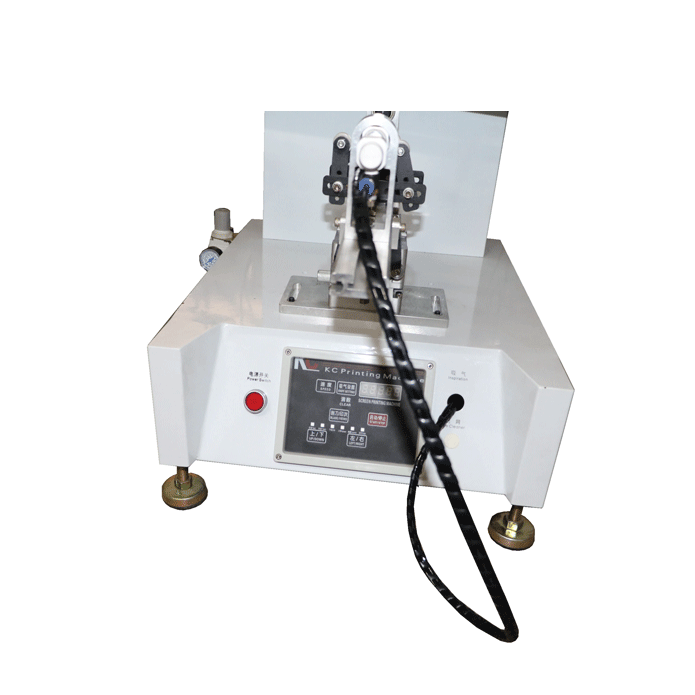

Product Image
