這是一款專門為各種塑料運動飛盤設計製造的全自動三色轉盤平面燙金機，由上料和下料輸送帶，平面轉盤工作台，液壓燙金裝置，自動收卷裝置，觸摸屏操作面板， 溫度控制系統構成。 操作者將飛盤放置於上料輸送帶上，在上料位置，飛盤會被機械手吸住放置於轉盤工作台的專用夾具上，轉盤工作台轉動，壓盤氣缸下壓將飛盤壓到合適的位置，轉盤繼續旋轉，一次完成三個顏色的燙金， 每個燙金裝置可以獨立調整燙板的上下，前後，左右位置以確保三種顏色燙金箔的精密套印， 每個燙金裝置也配備獨立的溫度控制系統，確保符合燙金箔的溫度匹配。完成燙金后，塑料飛盤最終隨着轉盤旋轉到下料位置，被機械手吸住轉移到下料輸送帶。整機採用PLC和觸摸屏進行控制，各項參數可以進行數據化管理，燙金裝置採用液壓驅動，壓力巨大，適合各種聚丙烯，聚乙烯製成的各種塑料運動飛盤。

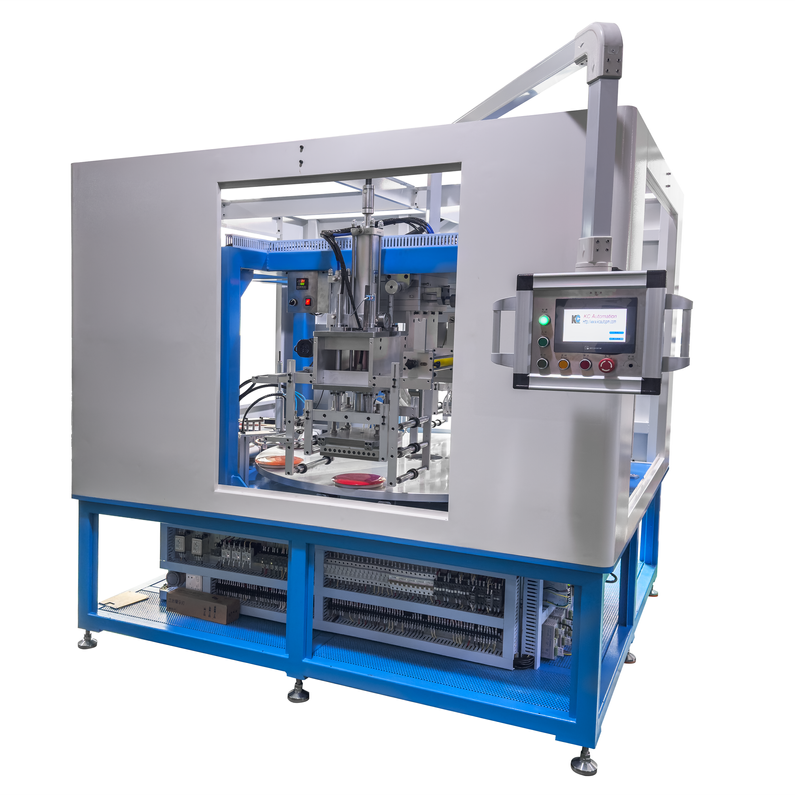

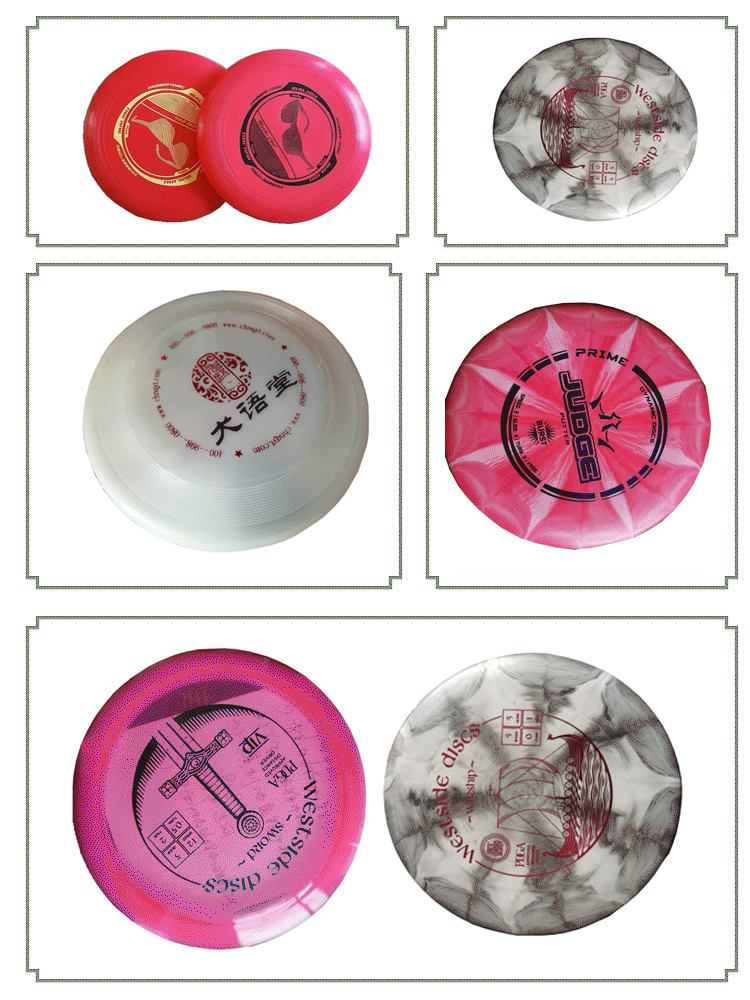

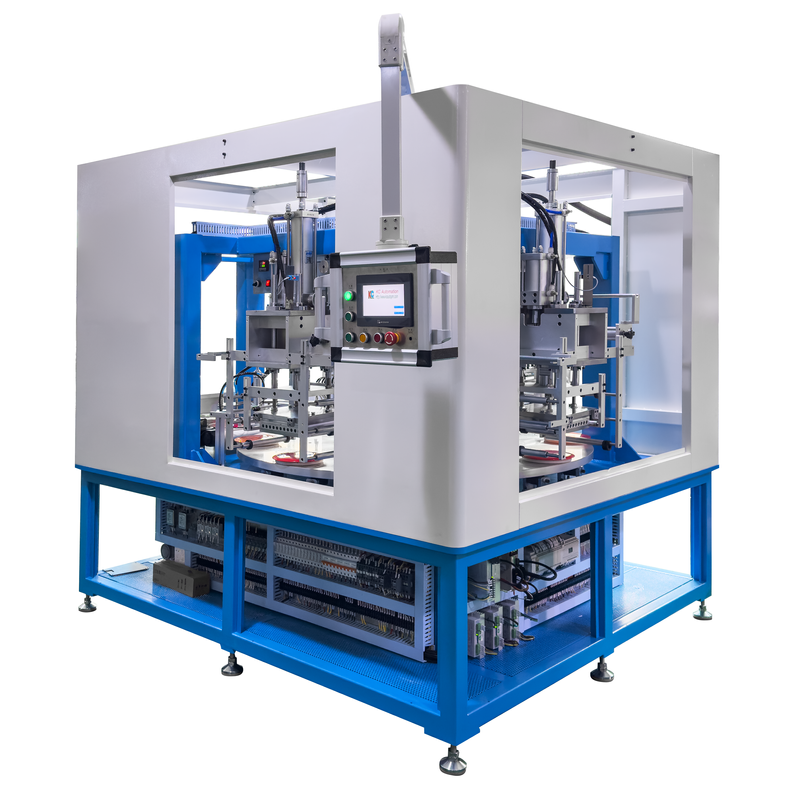

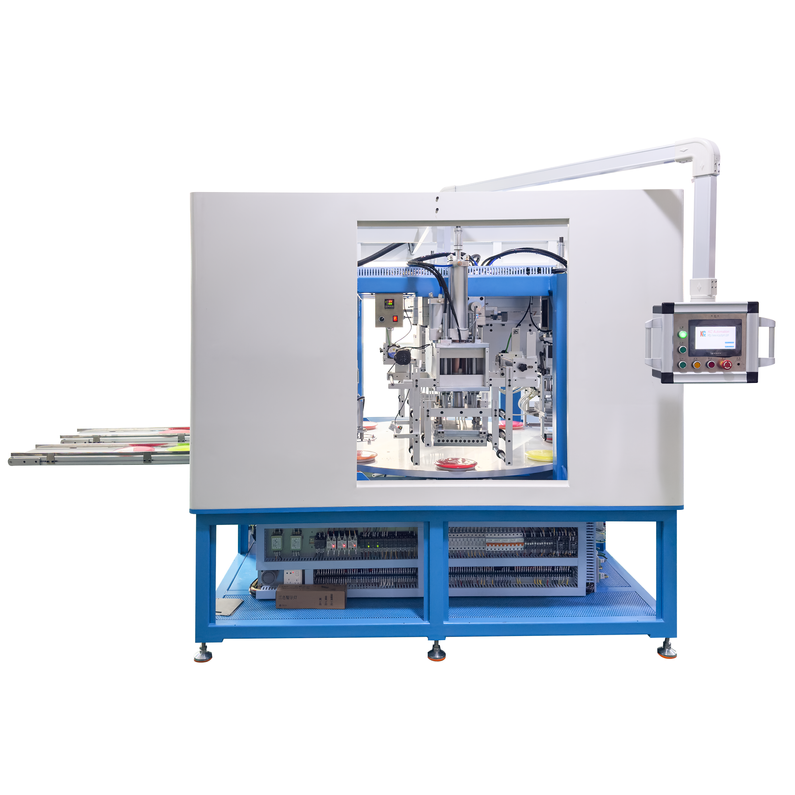

The automatic three-color turntable Hot Foil Stamping Machine is a fully automatic turntable Hot Foil Stamping machine designed specifically for foil hot stamping golf plastic discs in one to three colors. It utilizes a flat turntable structure with three hydraulic hot stamping units arranged around a 1-meter diameter aluminum rotating platform. The rotating platform is equipped with eight workstations for mounting fixtures and securing the plastic discs. Each time a disc enters a hot stamping unit, it is stamped with a single color of hot foil. It offers precise overprinting, stable operation, and easy operation.

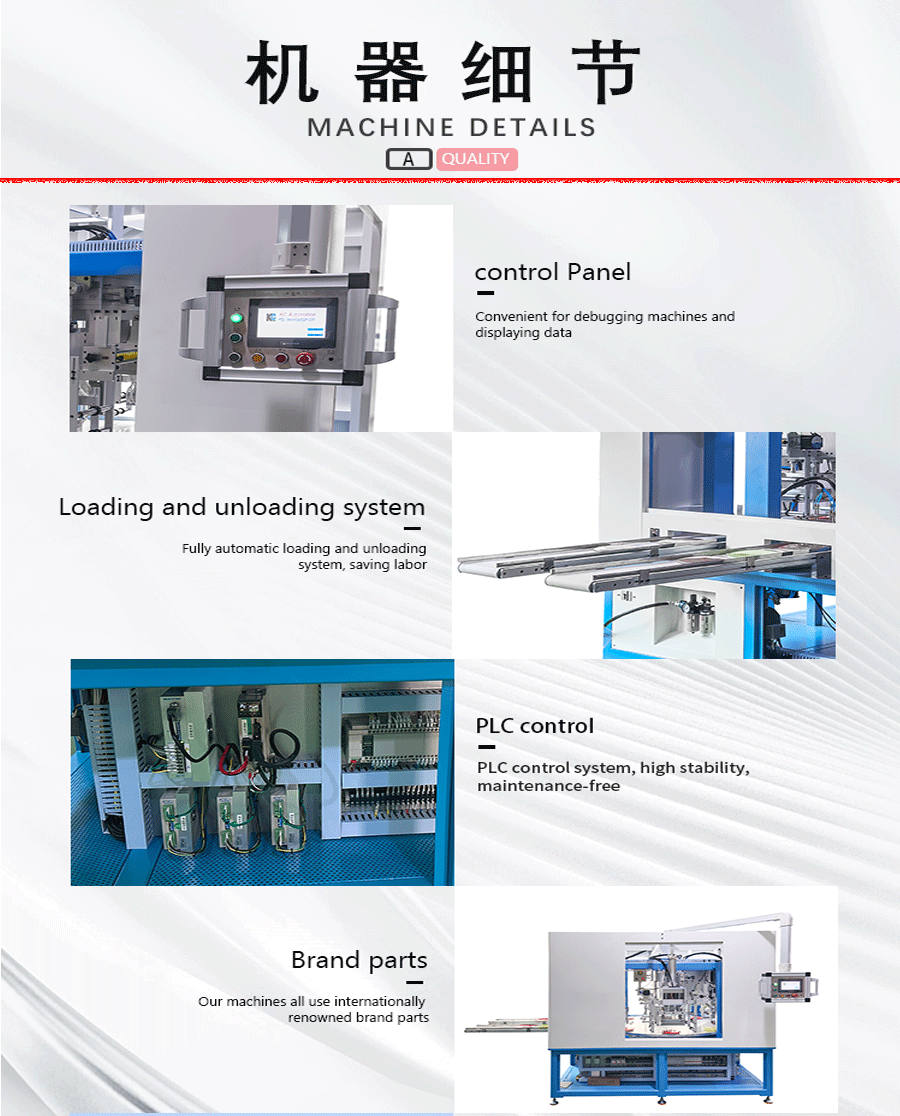

Details photo

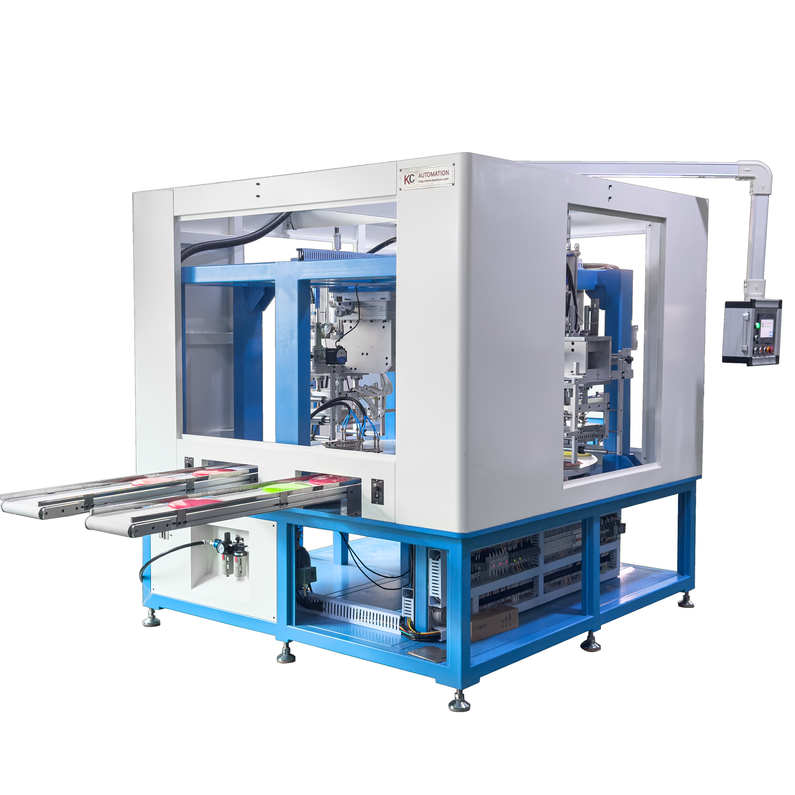

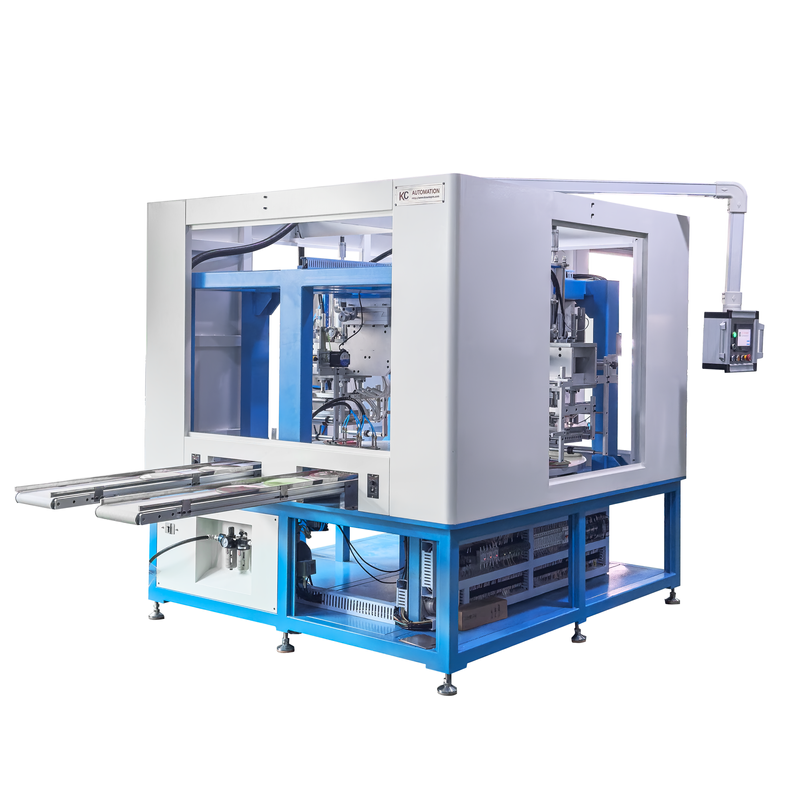

• Loading Conveyor: Automatically transports the plastic discs to be hot-stamped to the designated location. The conveyor speed is adjustable. When a disc reaches the loading position, the loading robot is activated.
• Loading Robot: Grabs the plastic discs from the conveyor and precisely places them on the fixture on the turntable worktable, replacing manual loading and ensuring accurate and consistent positioning.
• Turntable: A rotating worktable controlled by a precision cam divider. It typically has eight stations and can carry the plastic discs through the various hot stamping steps, enabling continuous production.
• Hydraulic Hot Stamping Device: Provides stable pressure to drive the hot stamping head into contact with the workpiece, ensuring a clear and secure hot stamping pattern.
• Three-Color Hot Stamping Head: Each head is compatible with three different colors of hot stamping foil, enabling multi-color hot stamping effects on workpieces, enriching product decoration.
• Unloading Robot: Removes the finished foil from the turntable and places it on the unloading conveyor, whose speed can also be adjusted.
The three-color fully automatic foil stamping machine is controlled by a touchscreen panel, allowing real-time adjustments to the foil pressure, temperature, and time based on the foiling status. Each foil head can be adjusted vertically, front-to-back, left-to-right, and at different angles to suit overprinting requirements, ensuring precise alignment of the three colors of foil to meet overprinting requirements.
