昇華紙打印機

昇華紙打印機

型號︰1823

品牌︰高寶

原產地︰中國

單價︰CNY ¥ 45000 / 件

最少訂量︰1 件

現在查詢

產品描述

Technical paramters.

Print head

Precision industrial piezoelectric nozzle

Print head No

2pcs

Ink type

Aqueous dye, ECO-solvent ink, Sublimation Ink

Ink shade

Yellow, Magenta, Cyan, Black

Rip software

Maintop  PhotoPRINT, Wasatch

Max printing width

1800mm

Data transmission interface

HI-USB2.0

Accuracy of transmission platform

0.05mm

Workroom temperature

15-300C

Humidity

40-60%

Operating System

Win7/Win8/Win10

Power supply

Ac220V-50/60HZ

Wattage

2500W

Machine size/Net weight

3070*750*1380MM/230KG

Package size/Gross weight

3250*950*950MM/320KG

Printing speed

Standard mode(3Pass)



360

V360*1080

50M2/H



Quality mode(4Pass)



360

V720

40M2/H



High definition mode(6Pass)



360

V720*1080

30M2/H

Max printing resolution

2880DPI



Product description

1. High-strength steel body, more stable

2. Precision feed platform, a stable paper transport, to ensure perfect print quality.

3. Suction feed platform, holding the paper during printing the same position;

4. industrial piezo print heads, high-precision, low noise, low wear, unattended printing operations;

5 .. one brushless servo motor control technology, precise trails, eliminate broken;

6. Automatic cleaning ink stack lift, efficient and complete cleaning effect;

7. External drying device, make sure the ink dried instantaneously;

7. The user-friendly interface, easy to operate;

7. The dual power collecting system and damped discharge system to ensure stable and orderly receipt;

8. High-speed fiber-optic bi-directional communication, data transmission more efficient;

9. VSDT advanced variable droplet control technology and high fault feathering technology, to ensure that the fine reproduction of fine details.

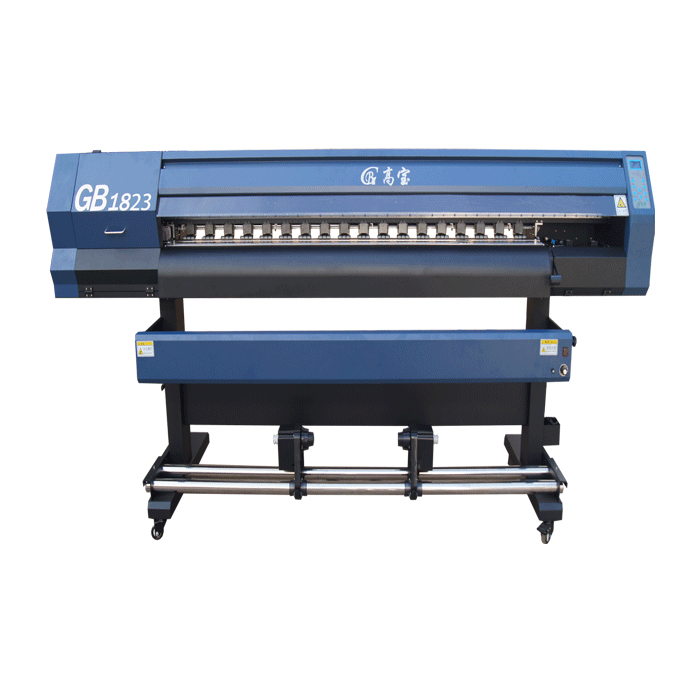

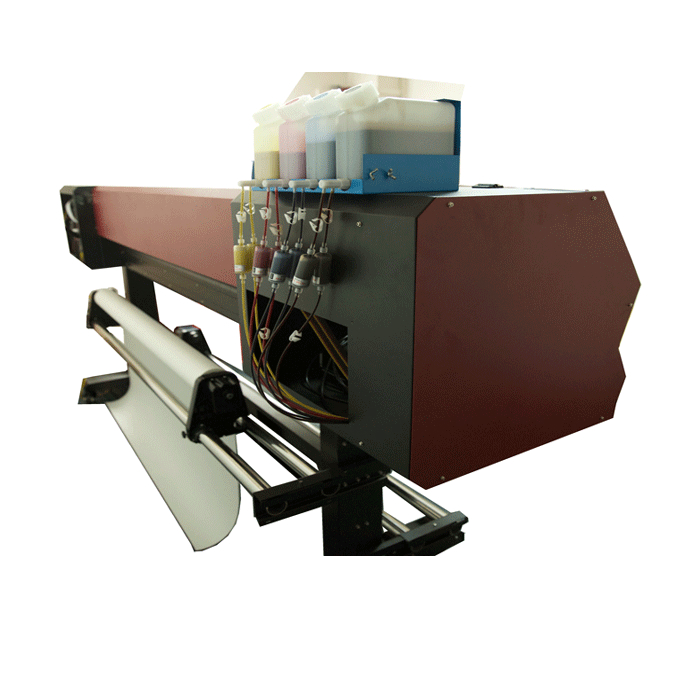

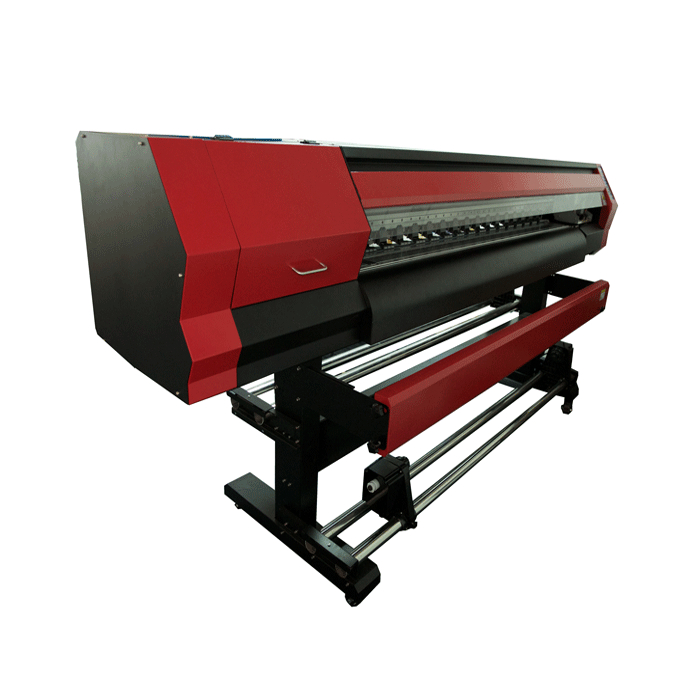

產品圖片
