产品描述

Machine description

• 100mm stainless steel conveyor ( Customized on customer products)
• Feeding  robot
• 8 stations rotating workbench
• IR Heating system
• Independent Stamping Plate adjustment device
• Fixture for samples
• Automatic foil feeding and collecting device
• High accurate Splitter
• World brand electronic control components
• PLC Operation system
• Automatic positioning system
• Safety cover

Machine parts

• Inovance servo motor + Taiwan TBI screw drive ironing head;
• Non-hot feeding and anti-fooling sensor device for positioning;
• Japanese OMRON touch screen and Japanese Panasonic PLC control system;
• brands can also be made according to customer requirements)
• Main motor and gearbox are made in Italy TRANSTECNO;
• The turntable and fixture are all high-precision grinding;
• Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
• Imported Texaco precision splitter;
• Prevent the phenomenon of abrasion during the working process of the product;
• The machine is equipped with a set of jigs.

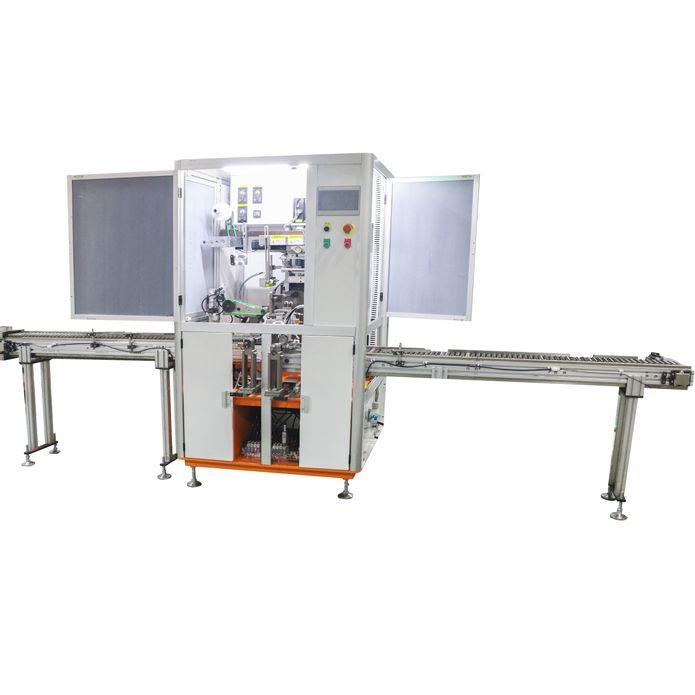

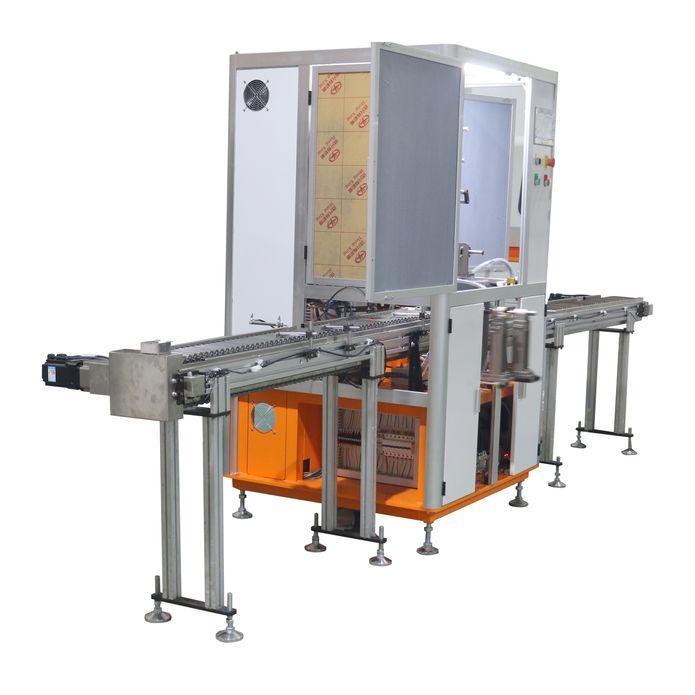

用途和特性︰ The automatic hot stamping machine with vertical turntable is the most mature product of the hot stamping machine. The maximum diameter of the hot stamping product can reach 50mm. The speed is also faster than other hot stamping machines. The hot stamping machine with vertical turntable structure can be equipped with different feeding and unloading mechanisms according to the shape of the product. Generally, the product is placed on the conveyor belt, and is clamped by the feeding manipulator to the fixture of the turntable, and the surface treatment and positioning are carried out in turn. , bronzing and blanking.

产品图片
