How to make a silicon rubber pad

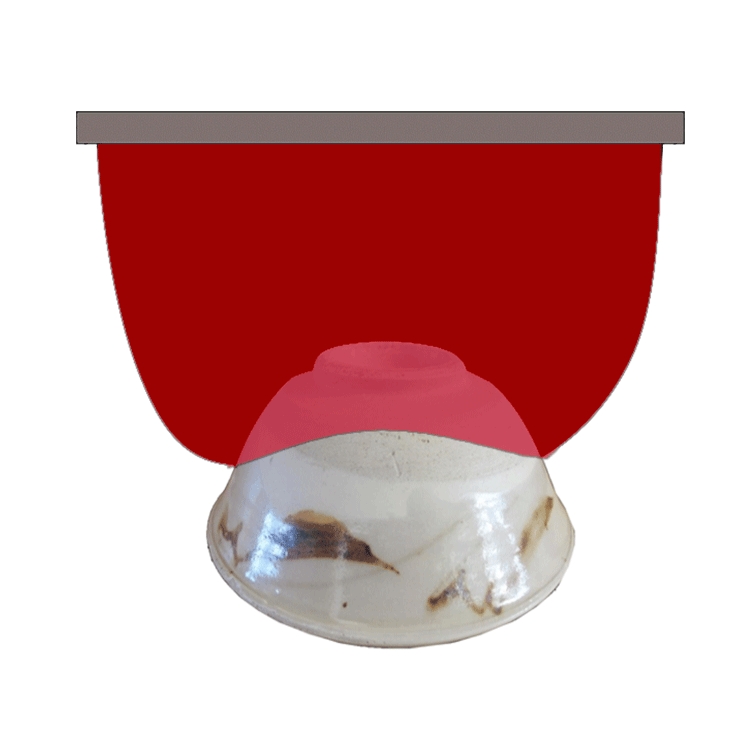

  Ink is transferred from the cave of pad plate to the substrate by a silicon rubber pad in the process of pad printing. Please choose pad figure and hardness according to the substrate and printing quality. Know how to make a pad as below:

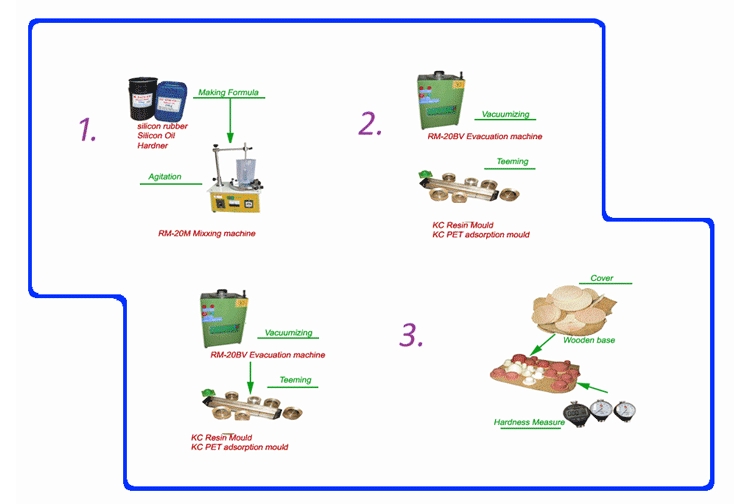

         1.Mixing
             Pouring mixing emulsion with silicon rubber and silicon oil as 100:20-50 percent into a clean plastic cup. Beat up it  uniformity with a beating machine- RM-20M mixxing machine.

2.Cleaning
       Cleaning the plastic pad module and put it on the table. In order to remove the pad easily after solid, Please coating some Release agent on the mould.

3.Harding
               Adding 3-5 gram harder to mix emulsion and put in a vacuum glass cover of motor machine  RM-20BV can vacuumized with 10kg Mixxing liquid . Start the machine for 2-4 minutes till the air in the  mixing emulsions completely removed.

4.Pouring & Covering
            Taking out mixing emulsion and pouring into pad module. Cover a wooden plate on it. There are two kinds of mould, One is Transparence resin mould, The other is PET adsorption mould . Pet adsorption mould is suitable for commonly rubber pads. Transparence resin mould more suitable for making high quality rubber pads.

5. Solidifying
             Solidification speed is related with the environment temperature, higher temperature,faster solidification speed. Otherwise, in order to expedite solidification speed, please put more  hardener into mixing emulsion.

6.Optimizing Hardness

        Complete solidification requires 2-5 hours. Adjust the percentage of silicon oil can adjust the the hardness of rubber pad. Less percentage of silicon oil will produce a harder pad. When you increase the percentage of silicon pad, please add corresponding percentage of hardener. But, too much percentage of silicon oil will affect pad quality negatively. Precision hardness of rubber pad need measure with Shore durometer.




Pad-Making materials







 Usage︰

Silicon rubber , Silcion oil and Hardner are three Mainly ingredients to make rubber pads.

Production Advantage ︰

  • Well wear resistance;
  • Good flexibitity, Excellent resist Tear Strength;
  • Easily to Controll on the process , Easily to Demould from The mould;
  • Very well ink transitivity to get good printing quality;
  • Sharp Edge of words on Rubber pads;
  • Long life to use and less ageing.
  • Size standard, Competent interchangeability;
  • Fine structure and meke hlaf-tone;
  • reducibility better and very good design edge of drawing.

Use Method︰

  • Fix silicon rubber and silcion oil;
  • Vacuumized the mixxing liquid with vacuumizing Machine;
  • Adding some Hardner;
  • Pour mixxing liquid to The mould made By resin or PET plastics Mould;
  • Cover the wooden plate;
  • take out the rubber pad from the mould after Solidification.

Storage︰

  • Store in shady place.
  • Storage In steel or Plastics bottle.
  • Shelf life︰ Two years.



Silicon rubber Model

Description

unit

Colour

Package weight

Package tool

1160# SR

KG

Red, white

5kg/15kg/25kg

Steel PP

2182# SR

KG

red

5kg/15kg/25kg

Steel pp

3202# SR

KG

red

5kg/15kg/25kg

Steel pp

4269# SR

KG

red

5kg/15kg/25kg

Steel pp

5307# SR

KG

red

5kg/15kg/25kg

Steel pp

6325# SR

KG

red

5kg/15kg/25kg

Steel pp

7791# SR

KG

red

5kg/15kg/25kg

Steel pp

B89# SR

KG

red

5kg/15kg/25kg

Steel pp

A306# SR

KG

Transparence

5kg/15kg/25kg

Steel pp

V SO

KG

Transparence

5kg/15kg/25kg

Steel pp


How to choose rubber pad?


       The pad printing pad is the iconic part of the pad printing machine, how to choose the pad printing pad is the most important part of the pad printing process.

  Shape
     The raw material of pad printing head is silicone rubber. Silicone rubber is vulcanized in different proportions with silicone oil and poured into molds of different shapes to make rubber heads of various shapes. Usually, the shape of the rubber head needs to be selected according to the shape of the printed image and necessary tests.
      Polished aluminum or crystal glue is used as the mold when making the rubber head. The hardness of the pad printing rubber head is determined by the silica gel and silicone oil prepared according to different proportions. After 24 hours or longer vulcanization time, the pad printing rubber head It took shape.
      The glue head is generally shaped with wood or aluminum. Wooden board and aluminum board are also fixed boards installed on the pad printing machine. The shape of the glue head has a common feature: the central area is raised, and the surrounding area is slowly descending, similar to a hillside. This structure is conducive to the transfer of ink and the discharge of air from the central area.
1. Round
      The ideal shape is a hemisphere. When the round rubber head is squeezed, the force on the side is balanced, and it is impossible to leave air bubbles between the rubber head and the ink during printing. By squeezing, the glue tip does a good job of picking up ink from the plate and transferring it to the substrate.
2. Square

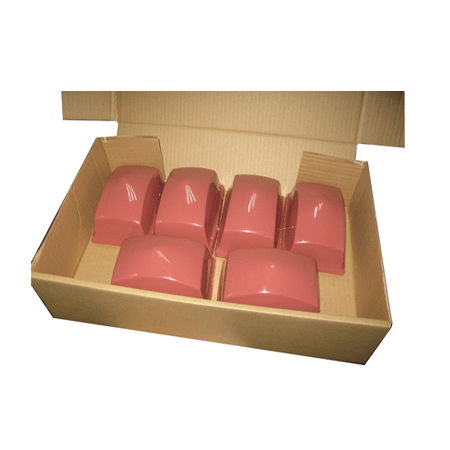

      The cross-sectional area of the rubber head is similar to a square, but it will gradually rise in the center of the rectangle. For some square patterns, the square rubber head should be preferred. The center point of the square rubber head must also be in a raised shape, which is also conducive to the extrusion effect of exhaust.
3. Long strip
     For some slender products, the strip-shaped rubber head should be considered. It is squeezed more in the length direction than in the width direction, but the deformation is small. It is often used to print egg packaging boxes, rulers and remote controls. Due to the different pressures on the length and width of such products, the necessary cutting can sometimes be performed.
4. Special shape
      If the pattern is not concentrated enough, there is a raised part in the middle of the printed pattern of the product, the edge of the dial, and the product of the step shape, it may be necessary to make a special shape of the rubber head. The special shape of the rubber head may be different due to the different pressure on each part. If the deformation of the pattern is uneven, necessary corrections should be made. How to make the product pad printing in the best state is the most important criterion for selecting the rubber head.

Specification
      The cross-sectional size of the pad printing head should be larger than the pattern to be printed, so that the deformation of the pad printing head will be smaller, and the smaller the deformation, the deformation of the pattern will be the smallest. Sometimes, you need to change the contact angle between the pad and the product Only then will a very ideal imprint be obtained.

Hardness
      The hardness of the rubber head is measured by the Shore durometer. The larger the degree, the greater the hardness, the smaller the deformation during pad printing, and the higher the precision. The hardness of the rubber head depends on the ratio of silicone rubber and silicone oil when making the rubber head, and the proportion of silicone oil The higher the rubber head, the softer it is. When printing more curved substrates, soft rubber heads should be used, and for relatively flat products, choose pad printing rubber heads with higher hardness.
